Object Detection Evolution: From HOG to YOLO to DETR

Introduction: The Quest for Computer Vision

How did we go from computers that couldn't tell cats from cars to systems that can identify dozens of objects in milliseconds?

For decades, enabling computers to "see" and understand visual data has been one of the most challenging problems in artificial intelligence. The ability to detect and locate objects within images is a fundamental task that unlocks countless applications - from autonomous vehicles and medical imaging to surveillance systems and augmented reality experiences.

This capability, known as object detection, has undergone a remarkable transformation in the past two decades. The journey from rudimentary algorithms that relied on hand-engineered features to today's sophisticated neural architectures represents one of the most striking success stories in modern computer science.

In this interactive exploration, we'll visualize how object detection has evolved from handcrafted features to end-to-end neural architectures, with interactive demonstrations at each step. By understanding this evolution, we can better appreciate the technical breakthroughs that have made computer vision one of the most rapidly advancing fields in technology today.

The Foundation: Traditional Computer Vision Approaches

Viola-Jones: The First Real-Time Object Detector

In 2001, Paul Viola and Michael Jones introduced a groundbreaking algorithm that, for the first time, made real-time face detection possible on consumer hardware. Their approach combined three key innovations: Haar-like features, the AdaBoost learning algorithm, and a cascade structure that allowed for efficient computation.

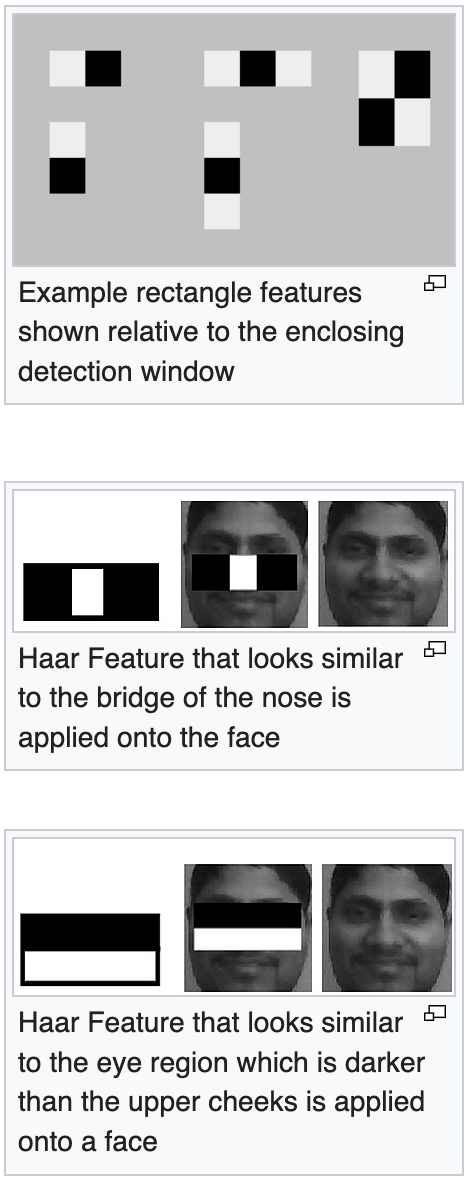

Haar-like features are simple rectangular filters that detect basic visual patterns like edges, lines, and center-surround features. These features are computed using integral images, which allow for constant-time feature computation regardless of filter size - a critical optimization that made real-time performance possible.

The cascade classifier architecture was perhaps the most innovative aspect of their work. By arranging classifiers in stages of increasing complexity, most non-face regions could be quickly rejected in early stages, focusing computational resources on promising regions. This "attentional cascade" approach reduced computation time dramatically while maintaining accuracy.

HOG (Histogram of Oriented Gradients) + SVM

In 2005, Navneet Dalal and Bill Triggs introduced the Histogram of Oriented Gradients (HOG) feature descriptor, which significantly improved object detection accuracy, particularly for pedestrian detection. HOG captures the distribution of gradient directions in localized portions of an image, creating a representation that is invariant to small geometric and photometric transformations.

HOG features paired with Support Vector Machines (SVMs) became the standard approach for object detection until the deep learning revolution. The technique works by:

1. Computing gradients throughout the image
2. Dividing the image into cells and creating histograms of gradient orientations for each cell
3. Normalizing these histograms within overlapping blocks to improve invariance to lighting changes
4. Concatenating these features into a vector
5. Training an SVM classifier on these feature vectors

DPM (Deformable Parts Models)

Pedro Felzenszwalb and colleagues introduced Deformable Parts Models (DPM) in 2008, extending HOG by modeling objects as collections of parts arranged in a deformable configuration. DPM addressed one of HOG's major limitations: the inability to handle significant variations in object appearance and pose.

DPM works by defining a "root" filter for the entire object and smaller part filters that can move relative to the root. Each part has an anchor position and a deformation cost for moving away from that position. During detection, the algorithm finds the optimal placement of all parts to maximize the overall score.

While DPM represented the pinnacle of traditional computer vision approaches to object detection, it was computationally expensive, with detection times measured in seconds per image. As deep learning emerged, these traditional approaches would soon be surpassed in both accuracy and speed.

The CNN Revolution: R-CNN Family

R-CNN: Region-based Convolutional Neural Networks

In 2014, Ross Girshick and colleagues introduced R-CNN (Region-based Convolutional Neural Networks), marking a paradigm shift in object detection. Instead of using hand-engineered features like HOG, R-CNN leveraged the power of deep learning to automatically learn hierarchical feature representations from data.

The R-CNN workflow consists of three main steps:

1. Region Proposal Generation: Using the Selective Search algorithm to generate approximately 2,000 category-independent region proposals per image
2. Feature Extraction: Running each proposed region through a pre-trained CNN to extract a fixed-length feature vector
3. Classification: Classifying each region using class-specific linear SVMs and refining the bounding box coordinates

R-CNN achieved a remarkable 30% relative improvement over the previous state-of-the-art DPM on the PASCAL VOC detection benchmark. However, it had significant limitations:

• Training was multi-stage and computationally expensive
• Detection was slow (47 seconds per image) because each region proposal required a separate forward pass through the CNN
• The Selective Search algorithm was a bottleneck and not learnable

Fast R-CNN: Streamlining Detection

To address these limitations, Girshick introduced Fast R-CNN in 2015. The key insight was to process the entire image once through the CNN, and then extract features for each region proposal from the resulting feature map using a technique called RoI (Region of Interest) pooling.

Fast R-CNN offered several advantages over the original R-CNN:

• Training was single-stage and 9x faster
• Detection was 213x faster (0.3 seconds per image vs. 47 seconds)
• Higher mean Average Precision (mAP) on benchmark datasets

However, Fast R-CNN still relied on the external Selective Search algorithm for region proposals, which remained a computational bottleneck.

Faster R-CNN: End-to-End Detection

In late 2015, Shaoqing Ren and colleagues introduced Faster R-CNN, which integrated region proposal generation into the network itself with a Region Proposal Network (RPN). This created the first truly end-to-end trainable object detection system.

The Region Proposal Network (RPN) operates on the feature maps produced by the convolutional backbone. At each sliding window position, the RPN predicts multiple region proposals using anchor boxes - predefined boxes of different scales and aspect ratios centered at each position.

Faster R-CNN remains a fundamental architecture in object detection research, achieving both high accuracy and reasonable inference speed. Its two-stage design - first generating region proposals, then classifying them - provides a strong balance between accuracy and efficiency.

Single-Shot Detectors: Trading Accuracy for Speed

SSD: Single Shot MultiBox Detector

While the R-CNN family provided high accuracy, their two-stage approach limited real-time applications. In 2016, Wei Liu and colleagues introduced SSD (Single Shot MultiBox Detector), which eliminated the separate region proposal stage by directly predicting bounding boxes and class probabilities from feature maps in a single forward pass.

SSD uses multiple feature maps at different scales to detect objects of various sizes. Early feature maps (with higher resolution) are responsible for detecting smaller objects, while deeper feature maps detect larger objects. At each feature map location, SSD predicts offsets to default boxes (similar to anchor boxes) and class probabilities.

SSD achieved comparable accuracy to Faster R-CNN while being 3-5x faster, enabling real-time object detection at 45-59 frames per second on a high-end GPU.

YOLO: You Only Look Once

Also in 2016, Joseph Redmon and colleagues introduced YOLO (You Only Look Once), which took a different approach to single-shot detection. YOLO divides the image into a grid and predicts bounding boxes and class probabilities directly from grid cells, treating detection as a regression problem.

The original YOLO architecture was simpler than SSD, using a single feature map to make predictions. Each grid cell predicts a fixed number of bounding boxes, each with a confidence score and class probabilities. This unified approach was extremely fast, achieving 45 frames per second on a high-end GPU.

The YOLO Evolution

YOLO has undergone numerous improvements since its introduction:

• YOLOv2/YOLO9000 (2017): Added anchor boxes, batch normalization, and multi-scale training, significantly improving accuracy while maintaining speed. YOLO9000 could detect over 9,000 object categories.
• YOLOv3 (2018): Used a deeper feature extractor (Darknet-53) and multi-scale predictions similar to SSD, further improving accuracy, especially for small objects.
• YOLOv4 (2020): Incorporated numerous enhancements including CSPNet backbone, PANet feature aggregation, and advanced training techniques like mosaic data augmentation.
• YOLOv5 (2020): Reimplemented in PyTorch with improved performance and usability, becoming one of the most widely used object detection models.
• YOLOv6/v7/v8 (2022-2023): Continued optimization with various architecture improvements and training techniques, pushing the speed-accuracy frontier further.

The YOLO family has become the go-to choice for real-time object detection applications, with each version incrementally improving the speed-accuracy tradeoff.

Feature Pyramid Networks and Advanced Architectures

Feature Pyramid Networks (FPN)

Feature Pyramid Networks (FPN) were introduced by Lin et al. in 2017. They address the challenge of detecting objects at multiple scales in a single forward pass. FPN consists of a top-down architecture with lateral connections that allow for feature reuse across scales.

FPN works by:

1. Building a feature pyramid from a single backbone network
2. Using lateral connections to propagate high-level features down to lower levels
3. Using high-level features to refine low-level features

Advanced Architectures

In addition to FPN, various other advanced architectures have been proposed to improve object detection accuracy and speed. These include:

• Residual Networks (ResNet): Used in many modern object detection architectures, ResNet provides deeper networks with better performance.
• Inception Networks: Used in the Inception family of architectures, Inception Networks allow for multiple feature maps to be processed in parallel.
• EfficientNet: Scalable architectures that achieve high accuracy with low computational cost.

These architectures have been integrated into various object detection models to further improve performance.

Instance Segmentation: Beyond Bounding Boxes

Mask R-CNN

In 2017, He et al. introduced Mask R-CNN, which extends Faster R-CNN by adding a branch for predicting object masks. Mask R-CNN is capable of performing instance segmentation, which is the task of detecting and classifying each instance of an object in an image.

Mask R-CNN works by:

1. Running the Faster R-CNN backbone to generate feature maps
2. Adding a mask branch to the feature maps
3. Training a separate mask branch for each object class

Mask R-CNN achieved state-of-the-art performance on the COCO dataset for instance segmentation.

Other Segmentation Methods

In addition to Mask R-CNN, various other instance segmentation methods have been proposed. These include:

• DeepLab: Used in many modern object detection architectures, DeepLab provides high-quality segmentation results.
• U-Net: A popular architecture for medical image segmentation, U-Net is also effective for object segmentation.

These methods are used in various object detection models to perform instance segmentation.

Anchor-Free Detectors: Simplifying the Pipeline

CornerNet

In 2018, Lin et al. introduced CornerNet, which uses a single neural network to predict object corners (top-left and bottom-right) instead of bounding boxes. CornerNet is an anchor-free detector that achieves state-of-the-art performance on the COCO dataset.

CornerNet works by:

1. Using a single neural network to predict object corners
2. Training the network to predict heatmaps for object corners
3. Training the network to predict offsets for object corners

CenterNet

In 2019, Duan et al. introduced CenterNet, which uses a single neural network to predict object centers (top-left) and object sizes. CenterNet is another anchor-free detector that achieves state-of-the-art performance on the COCO dataset.

CenterNet works by:

1. Using a single neural network to predict object centers
2. Training the network to predict heatmaps for object centers
3. Training the network to predict offsets for object sizes

Other Anchor-Free Methods

In addition to CornerNet and CenterNet, various other anchor-free methods have been proposed. These include:

• FCOS: Fully Convolutional One-Stage Object Detection, which uses a single neural network to predict object centers and sizes.
• YOLOv5: Reimplemented in PyTorch with improved performance and usability, becoming one of the most widely used object detection models.

These methods are used in various object detection models to simplify the pipeline.

Transformers Enter Computer Vision: DETR and Beyond

DETR: End-to-End Object Detection with Transformers

In 2020, Facebook AI Research introduced DETR (DEtection TRansformer), which represented a radical departure from previous object detection approaches. DETR leverages the Transformer architecture, originally designed for natural language processing tasks, and applies it to object detection.

DETR eliminates many of the hand-designed components in previous detection systems, such as anchor boxes and non-maximum suppression, replacing them with a simple, end-to-end approach:

1. A CNN backbone extracts features from the input image
2. A Transformer encoder-decoder processes these features
3. A set of learned object queries interact with the encoded image through self-attention
4. The decoder outputs a fixed set of predictions (e.g., 100 objects) directly
5. A bipartite matching loss assigns predictions to ground truth objects, encouraging one-to-one matching

The key innovation in DETR is treating object detection as a direct set prediction problem. Unlike previous approaches that predict a large number of candidate boxes and then filter them, DETR directly predicts a fixed set of objects with no duplicate detections. This is achieved through the bipartite matching loss, which finds the optimal one-to-one assignment between predictions and ground truth objects.

Deformable DETR and Efficient Variants

While DETR achieved comparable performance to Faster R-CNN, it had some limitations, particularly slow convergence during training and difficulties with small objects. To address these issues, researchers developed several improved variants:

• Deformable DETR (2020): Introduced deformable attention, which attends to a small set of key sampling points around a reference, improving convergence speed and performance on small objects.
• Conditional DETR (2021): Modified the cross-attention mechanism to be conditioned on content queries, leading to faster convergence and better performance.
• DAB-DETR (2022): Introduced dynamic anchor boxes to DETR, bridging the gap between traditional anchor-based methods and DETR's query-based approach.
• RT-DETR (2023): A real-time variant of DETR optimized for efficient inference, achieving state-of-the-art performance among real-time detectors.

The advent of transformers in computer vision, exemplified by DETR, represents a fundamental shift in approach. By bringing the same architecture that revolutionized NLP to vision tasks, researchers have opened up new possibilities for unified models that can handle multiple modalities and tasks.

Modern Architectures and Future Directions

Latest SOTA Models (2021-Present)

The field of object detection continues to evolve rapidly, with new architectures pushing the boundaries of what's possible. Some of the most significant recent advancements include:

• Swin Transformer (2021): This hierarchical vision transformer uses shifted windows to efficiently process images at multiple scales, achieving state-of-the-art performance on object detection and segmentation tasks when used as a backbone.
• YOLOv7/v8 (2022-2023): The YOLO family continues to evolve, with newer versions incorporating advanced training techniques, improved architectures, and better feature aggregation methods to achieve unprecedented speed-accuracy trade-offs.
• DINO (2022): DETR with Improved deNoising anchOr boxes combines the best of DETR and traditional anchor-based methods, achieving state-of-the-art performance on the COCO benchmark.
• RT-DETR (2023): Real-Time Detection Transformer combines the elegance of DETR with the speed requirements of real-time applications, bridging the gap between transformer-based and CNN-based detectors.

Technical Trends Analysis

Looking at the evolution of object detection, several clear technical trends emerge:

1. Model Scaling and Efficiency: There's a growing focus on developing models that scale efficiently with computational resources, inspired by works like EfficientDet and EfficientNet.
2. Self-Supervised Learning: Reducing dependence on labeled data through self-supervised pre-training has become increasingly important, allowing models to learn from vast amounts of unlabeled data.
3. Multi-Task Learning: Modern architectures increasingly handle multiple vision tasks simultaneously (detection, segmentation, pose estimation), sharing computation and leveraging task relationships.
4. Hardware-Aware Design: Models are increasingly designed with specific hardware acceleration in mind, with optimizations for GPUs, TPUs, or mobile devices.

Vision Foundation Models

Perhaps the most significant trend is the emergence of vision foundation models - large-scale models pre-trained on vast datasets that can be fine-tuned for specific downstream tasks, including object detection:

• CLIP (Contrastive Language-Image Pre-training): Jointly trained on images and text, providing a powerful representation that can be adapted to many vision tasks.
• SAM (Segment Anything Model): A foundation model for image segmentation that can be prompted to segment any object, providing a strong basis for instance segmentation tasks.
• DINOv2: A self-supervised vision transformer that learns powerful visual representations without labels, serving as an excellent backbone for detection tasks.

These foundation models are changing how we approach computer vision tasks, moving away from task-specific architectures toward more general-purpose visual systems that can be adapted to multiple tasks with minimal fine-tuning.

Practical Implementation and Deployment

Model Selection Guidelines

Choosing the right object detection model for your specific use case involves balancing several factors:

• Accuracy Requirements: Does your application need the highest possible accuracy, or is a good-enough solution sufficient?
• Speed/Latency Requirements: Does detection need to happen in real-time? On what hardware?
• Resource Constraints: What are the memory, computation, and power limitations of your target deployment environment?
• Object Characteristics: Are the objects small or large? Densely packed or isolated? Rigid or deformable?
• Scene Complexity: Are the backgrounds complex or simple? Are there occlusions, varying lighting conditions, or other challenges?

Real-World Applications

Different detection algorithms excel in different real-world scenarios:

Deployment Considerations

Beyond choosing the right algorithm, successful deployment involves several additional considerations:

• Model Optimization: Techniques like quantization, pruning, and knowledge distillation can significantly reduce model size and inference time with minimal accuracy loss.
• Hardware Acceleration: Different hardware platforms (CPU, GPU, TPU, mobile SoCs) have different optimization requirements and support different acceleration frameworks.
• Latency vs Throughput: For some applications like video analysis, batch processing can increase throughput at the cost of higher latency.
• Continuous Learning: Production systems often benefit from continuous learning to adapt to changing conditions or new types of objects.

The right deployment strategy depends heavily on your specific constraints and requirements. Modern frameworks like ONNX, TensorRT, CoreML, and TensorFlow Lite provide tools to optimize and deploy models across a wide range of hardware platforms.

Conclusion: The Object Detection Landscape

The Evolution Journey

We've traced the remarkable journey of object detection algorithms from their humble beginnings with traditional computer vision approaches like Viola-Jones and HOG, through the deep learning revolution with R-CNN and its descendants, to the efficiency breakthroughs of single-shot detectors like YOLO and SSD, and finally to the transformer-based approaches like DETR that are reshaping the field today.

This evolution reflects broader trends in artificial intelligence: the shift from hand-engineered features to learned representations, the increasing importance of end-to-end trainable systems, and the emergence of unified architectures that can tackle multiple vision tasks.

Current State of the Art

Today's object detection landscape is characterized by diversity and specialization:

• Speed Champions: YOLOv8, RT-DETR, and other real-time detectors continue to push the boundaries of efficiency while maintaining strong accuracy.
• Accuracy Leaders: DINO, Cascade Mask R-CNN with Swin Transformer backbones, and other high-capacity models achieve the highest accuracy on benchmark datasets.
• Specialized Solutions: Domain-specific architectures for medical imaging, aerial photography, microscopy, and other specialized applications demonstrate the adaptability of core detection concepts.

The field has matured to the point where high-quality implementations of most major algorithms are freely available, lowering the barrier to adoption and enabling faster iteration and improvement.

Future Directions

Looking ahead, several exciting directions are emerging:

1. Multimodal Understanding: Integrating vision with language, audio, and other modalities to enable richer understanding of scenes and objects.
2. Few-Shot and Zero-Shot Detection: Detecting new object categories with few or no labeled examples, leveraging knowledge transfer from foundation models.
3. 3D and Video Understanding: Moving beyond static 2D images to full spatial and temporal understanding of objects in video and 3D data.
4. Neuro-Symbolic Approaches: Combining neural networks with symbolic reasoning to incorporate prior knowledge and constraints into detection systems.

As these directions develop, object detection will continue to be a cornerstone of computer vision, enabling machines to understand and interact with the visual world in increasingly sophisticated ways.

Final Thoughts

The evolution of object detection represents one of the most successful stories in artificial intelligence research. From struggling to identify simple patterns to effortlessly locating dozens of complex objects in challenging scenes, the progress has been remarkable.

This progress has enabled countless applications that are now part of our daily lives - from the face detection in our smartphone cameras to the perception systems in self-driving cars, from medical image analysis that helps diagnose diseases to augmented reality systems that blend the digital and physical worlds.

As computers continue to get better at "seeing" the world around them, the boundaries between human and machine perception will continue to blur, opening up new possibilities for how we interact with technology and how technology can assist us in understanding our visual world.
